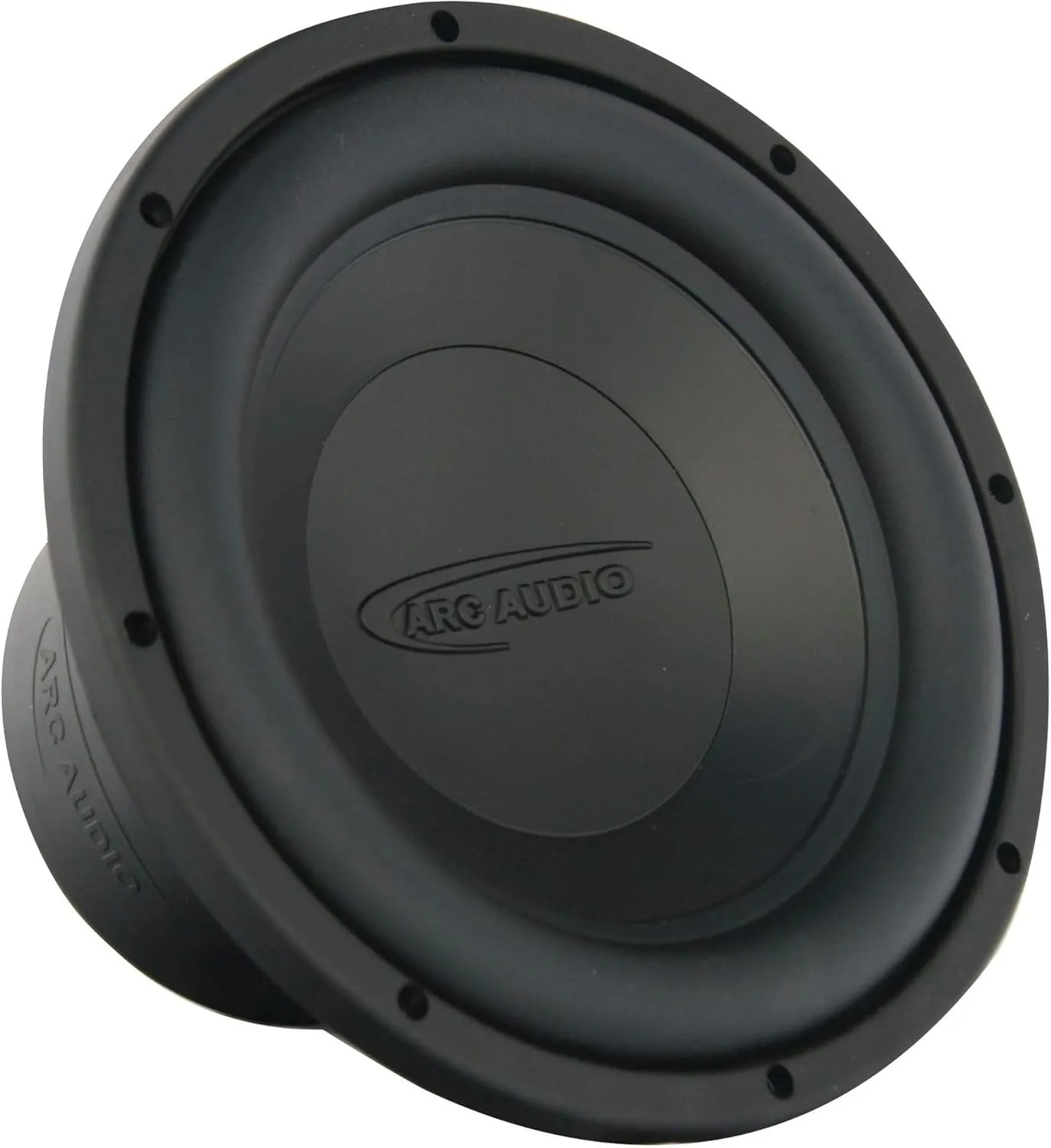

Arc Audio ARC-12D2 12” 2 Ohm Subwoofer
Designed And Engineered In The USA
High-Temperature Black Anodized Voice Coil
Linear Design For Improved Dynamics And SPL At Low And High Volumes
One Piece Molded Rubber Surround
Stamped Steep Basket
Progressive Flat Layered Spider With Integrated Tinsel Leads
Designed For Small To Moderate Sized Sealed And Ported Enclosures
Mounting Depth 5-3/4"
Cutout Diameter 11-1/8"
Minimum Sealed Enclosure - 0.9 cu ft
Optimum Sealed Enclosure - 1.1 cu ft
Maximum Sealed Enclosure - 1.125 cu ft

Specifications -
Power Handing (Peak) - 700 Watts
Power Handling (RMS) - 350 Watts
Impedance - Dual 2 Ohm
Minimum Sealed Enclosure - 0.9 cu ft
Optimum Sealed Enclosure - 1.1 cu ft
Maximum Sealed Enclosure - 1.25 cu ft
Cutout Diameter - 11-1/8"
Mounting Depth - 5-3/4"

• Package Dimensions ‏ : ‎ 17 x 14.5 x 13.38 inches; 17 Pounds
• Date First Available ‏ : ‎ September 17, 2019
• Manufacturer ‏ : ‎ ARC Audio
